Automatic flexible tube cutter HS-30 (HMI Touch Screen Version)

SKU: Tube cutting machine hs30

Automatic Soft Tube Cutting Machine HS-30 (HMI Touch Screen Version) is a precise, high-speed industrial processing solution with outstanding advantages:

Comprehensive upgrade: HMI touch screen, parameter setting with just “1 touch”.
Diverse cutting materials: Specializing in heat shrink tubing, silicone tubing, PVC, Teflon, electrical wires, nylon fibers...
Huge productivity: Cutting speed up to 10,000 pieces/hour.
Processing range: Tube diameter Ø1 – Ø20 mm. Cutting length from 1mm to 1000 meters.
High accuracy: Low error (± 0.05 + 2%), with error compensation and storage of 100 cutting programs.
Power supply: 220V/50Hz – Powerful 500W capacity.

Contact for a quote

Chat Zalo 0969 56 56 80

Sales Leader: 0366 139 169 Sales Exec: 087 86 000 86

Automatic Industrial Hose Cutting Machine, HS-30
Touch Screen Version
Automatic Industrial Hose Cutting Machine, HS-30 (Touch Screen Version)

Comprehensive upgrade with HMI screen. Simple touch operation, supports cutting lengths up to 1000 meters.
Comprehensive upgrade with HMI screen. Simple touch operation, supports cutting lengths up to 1000 meters.

Tổng quan máy cắt ống mềm công nghiệp HS-30 bản cảm ứng

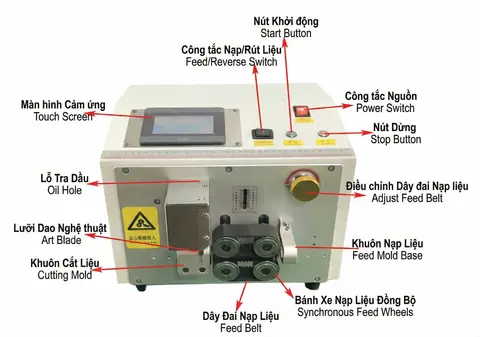

Overview image of HMI Touch Screen Version
Overview image of HMI Touch Screen Version

▶️ Actual Operation Video
Actual Operation Video

📋 Detailed Specifications
Detailed Specifications

Display Screen Display Screen	HMI Touch Screen (Vietnamese/English) HMI Touch Screen (Vietnamese/English)
Max Cutting Length Max Cutting Length	1mm – 1,000,000 mm (1000 meters) 1mm – 1,000,000 mm (1000 meters)
Cutting Speed Cutting Speed	10,000 pcs/hour (L=50mm) 10,000 pcs/hour (L=50mm)
Cutting Diameter Cutting Diameter	Ø1 – Ø20 mm
Tolerance Tolerance	L ± 0.05 + 2%
Cutting Method Cutting Method	HSS Blade – Electric Motor Cutting HSS Blade – Electric Motor Cutting
Power & Voltage Power & Voltage	500W – AC220V/50HZ
Dimensions & Weight Dimensions & Weight	410 x 410 x 340 mm \| 26.5 Kg
Applicable Materials Applicable Materials	Silicone tube, heat shrink tube, PVC tube, teflon tube, wires, nylon… Silicone tube, heat shrink tube, PVC tube, teflon tube, wires, nylon…

Main Screen / Main Screen

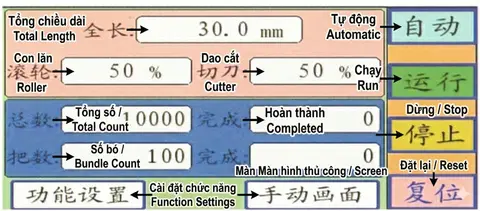

Automatic Operation
Automatic Operation

Parameter explanation:
Parameter explanation:

🔹 Cutting Length:
Cutting Length:
Input the length to cut (Unit: mm).
Input the length to cut (Unit: mm).
🔹 Speed Settings:
Speed Settings:
- Roller Speed: Feeding speed (%).
  Roller Speed: Feeding speed (%).
- Cutter Speed: Cutting speed (%).
  Cutter Speed: Cutting speed (%).
🔹 Production Counter:
Production Counter:
- Total: Counts the total quantity cut.
  Total: Total quantity cut.
- Batch Quantity: Set the quantity per batch (e.g., 100 pcs/batch).
  Batch Qty: Qty per batch (e.g., 100 pcs/batch).
🔹 Running Mode:
Running Mode:
- Auto: Machine runs continuously.
  Auto: Continuous running.
- Jog/Inch: Press and hold to run, release to stop (for alignment).
  Jog/Inch: Press to run, release to stop.
🔹 Control Buttons:
Control Buttons:
Run / Stop / Reset to origin (Reset).

Test Mode / Test Mode

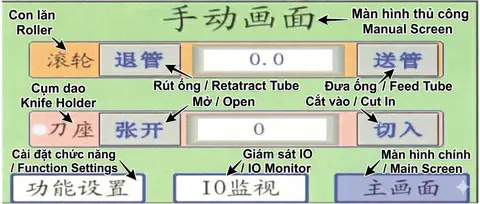

Manual Control
Manual Control

Check individual parts when changing molds or feeding:
Check individual parts when changing molds or feeding:

Roller Control
Roller Control

Feed tube (Feed) / Reverse tube (Reverse).

Cutter Control
Cutter Control

Cut in (Cut) / Open cutter (Open).

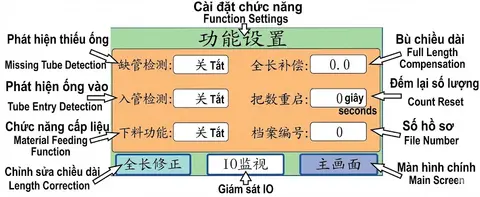

Advanced Settings / Advanced Settings

Function Settings
Function Settings

1. Auto stop when material runs out:
Auto stop when material runs out (Sensor required).
Sensor automatically stops the machine when tubing runs out (Additional sensor required).

2. Inlet synchronization:
Inlet synchronization (with extruder/feeder).
Connects with extruder/unwinder.

3. Discharge conveyor:
Discharge conveyor control.
Controls the product conveyor (if equipped).

4. Length error compensation:
Length compensation.
Input positive/negative values to automatically add or subtract error.

5. Batch pause time:
Batch restart delay (seconds).
Set pause time (seconds) after cutting 1 batch.

6. Program code:
Program Code (Memory 1-100).
Save and recall settings (Memory 1-100).

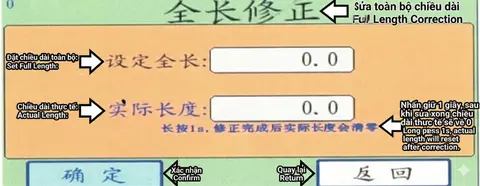

Absolute Precision / High Precision

Actual Calibration
Actual Calibration

Use when actual length does not match the setting due to material elasticity.
Use when actual length differs from setting due to material elasticity.

Procedure: Process:

Input Set Length (e.g., 100mm).
Input Set Length (e.g., 100mm).
Test cut and measure Actual Length (e.g., 102mm).
Test cut & measure Actual Length (e.g., 102mm).
Input “102″ into the “Actual Length” box.
Input “102″ into “Actual Length” box.
Important: Press and hold the Confirm button for 1 second.
Important: Hold Confirm button for 1 sec.
When the number resets to 0, the machine has automatically saved the compensation ratio.
When numbers reset to 0, compensation is saved.

Common Faults & Troubleshooting
Common Faults & Troubleshooting

Fault Situation Fault Situation	Cause Cause	Solution Solution
Moves but fails to cut Moves but fails to cut	Sensor damaged, debris in cutter base. Sensor damaged, debris in cutter base.	Replace sensor, clean debris. Replace sensor, clean debris.
No cutter movement No cutter movement	Driver damaged or belt broken. Driver damaged or belt broken.	Replace driver or belt. Replace driver or belt.
Slanted cut Slanted cut	Cutting mold mismatch. Cutting mold mismatch.	Replace with matching mold. Replace with matching mold.
Length tolerance error Length tolerance error	Roller too loose or elastic material. Roller too loose or elastic material.	Increase pressure or use payoff machine. Increase pressure or use payoff machine.

* Actual images and interface may vary by production batch.
* Actual images and interface may vary by production batch.
