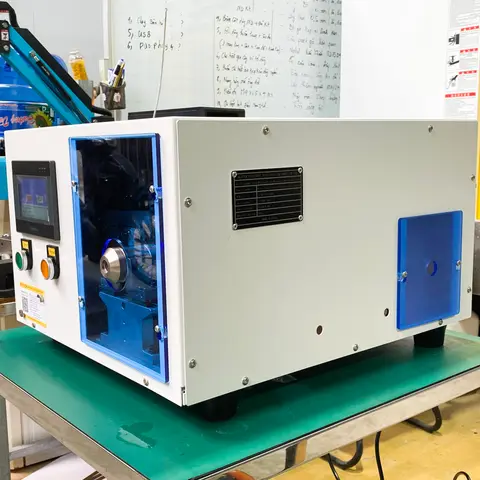

O型圈装配机 VT-OR-ASSY 是全面的自动化解决方案,帮助企业提高生产率,比手动方法提高4倍。 (The VT-OR-ASSY O-ring assembly machine is a comprehensive automation solution, helping businesses increase productivity by 4 times compared to manual methods.)
突出特点 / Key Features:
高速:产能达到1200件/小时,完全取代手工操作。 (High Speed: Reaches a capacity of 1200 pcs/hour, completely replacing manual operations.)
绝对安全:保证不划伤产品和O型圈表面。 (Absolute Safety: Guaranteed no scratches on product surfaces and O-rings.)

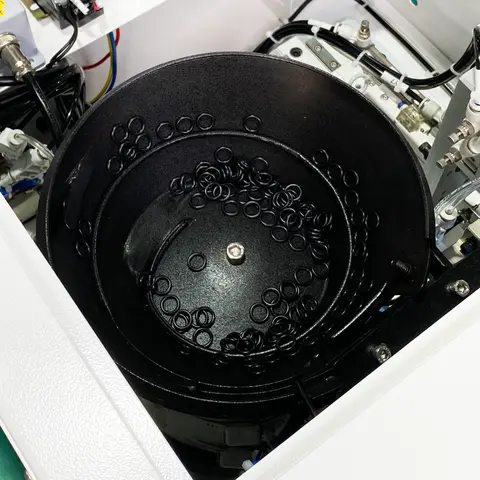

清洁技术:振动供料盘采用特殊特氟龙涂层,防尘并最大限度减少摩擦。 (Clean Technology: The vibratory feeder bowl is coated with special Teflon to prevent dust adhesion and minimize friction.)

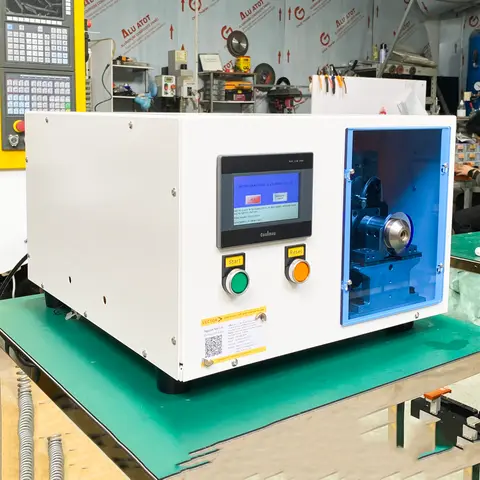

操作简便:松下PLC控制系统配合HMI触摸屏。 (Easy Operation: Panasonic PLC control system combined with HMI touch screen.)
|

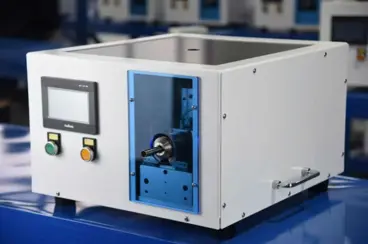

型号:VT-OR-ASSY
自动化密封圈组装解决方案Automatic Sealing Ring Assembly Solution
完全替代人工操作。产能提升至1200件/小时,消除因组装不当造成的不良品。 Completely replace manual operations. Increase capacity to 1200 pcs/hour, eliminate defects caused by incorrect assembly.
|
产能:1200 pcs/h
Capacity: 1200 pcs/h |
|
人工操作
Manual Process
|
300件 (pcs)
|
|
VT-OR-ASSY设备
VT-OR-ASSY Machine
|
1200件 (pcs) – 4倍 (4x)
|
* 与传统工艺相比,使用本设备可节省 75% 的作业时间。
* Using the machine saves 75% of working time compared to traditional methods.
| 适用密封圈范围 O-Ring Range |
ID: 2.0 – 30 mm 线径 (Wire): 0.5 – 4.0 mm |
工作气压 Air Pressure |
0.5 – 0.8 MPa (标准/Std: 0.6 MPa) |
| 外形尺寸 Machine Dimensions |
450 x 520 x 320 mm | 重量 Weight |
41 kg |
| 电源 Power Supply |
AC 220V / 50Hz | 功率 Power Consumption |
500W |
| 控制系统 Control System |
Panasonic PLC + Weinview HMI 触摸屏 Panasonic PLC + Weinview HMI Screen |
||
高速自动组装流程视频
High-speed automatic assembly process video
|
步骤 1:上料
Step 1: Feeding
将密封圈倒入振动盘。机器自动按正确方向排列密封圈。 Pour O-rings into the vibratory bowl. Machine automatically sorts O-rings. |
步骤 2:定位
Step 2: Positioning
操作员将产品(轴、活塞等)放入定位夹具中。 Operator places product (shaft, piston…) into the positioning fixture. |
步骤 3:组装
Step 3: Assembling
轻轻按下,机器自动撑开密封圈并套入槽内。 Press gently, machine automatically expands O-ring and inserts into groove. |
