VT-EBS-W Series wireless electronic scale with integrated warning light

SKU: VT-EBS-W

Wireless electronic scale VT-EBS-W Series is a high-precision measurement solution, integrating plug-and-play wireless transmission technology. The device is optimized for automation factories, component counting and packaging stations.

Connection range: Supports data transmission distance of 10m (COM mode) and from 20~50m (Text/HID mode).
Smart alarm: 3-color light combined with buzzer alarm when weight exceeds limit or does not meet standard.
Industrial durability: Housing made of impact-resistant ABS plastic material.

📌 NOTE: Vector Vina provides software development for management, connection and data transmission of electronic scales according to the actual requirements of each factory (This service is chargeable, please contact technical support for consultation).

Contact for a quote

Sales Leader: 0366 139 169 Sales Exec: 087 86 000 86

VT-EBS-W Series Wireless Electronic Scale Details

Tổng quan cân điện tử không dây VT-EBS-W

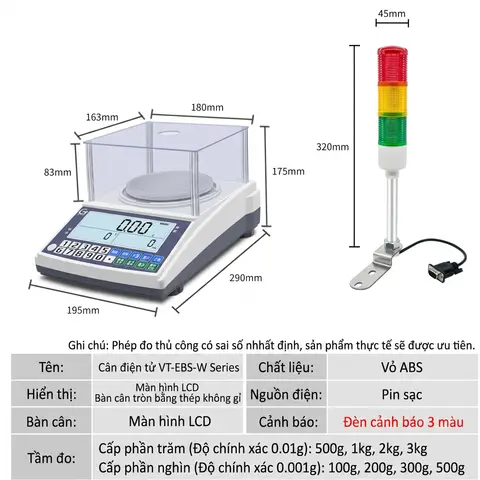

1. Product Technical Specifications

Product Code (SKU)	Max Capacity	Readability (Accuracy)
VT-EBS100-1AL-W	100g	0.001g
VT-EBS200-1AL-W	200g	0.001g
VT-EBS300-1AL-W	300g	0.001g
VT-EBS500-1AL-W	500g	0.001g
VT-EBS1000-10AL-W	1000g	0.01g
VT-EBS2000-10AL-W	2000g	0.01g
VT-EBS3000-10AL-W	3000g	0.01g

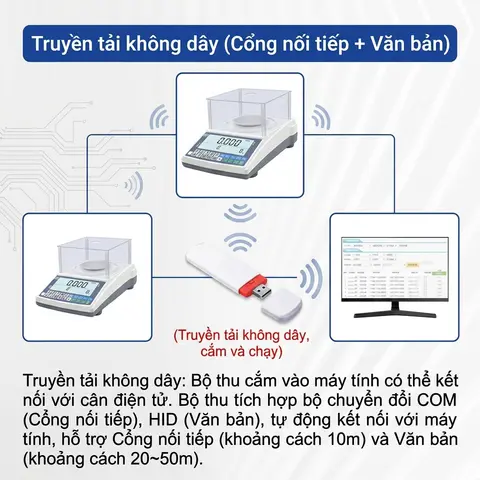

2. Wireless Transmission Method (Plug & Play)

The system uses an integrated “plug and play” receiver that automatically connects to a computer without installing drivers. It simultaneously supports two output platforms for flexible data management:

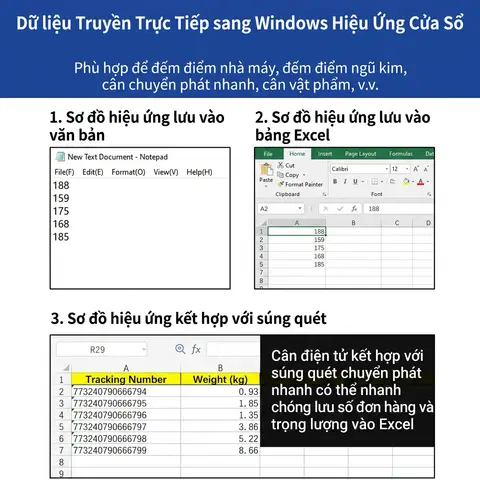

Text Output (HID): Automatically enters data directly into Excel, Notepad, or internal SOP systems. Long transmission range of 20~50m.
Serial Port (COM) Output: Ideal for engineers to program and integrate with specialized software. Maintains a stable signal within a 10m range.

Phương thức truyền tải không dây của cân điện tử

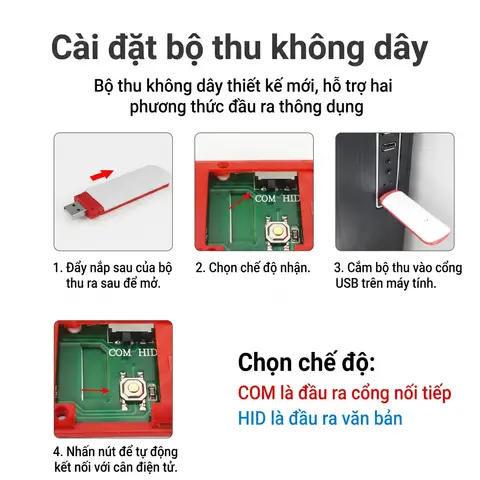

3. Receiver Mode Setup Guide

Slide the back cover of the USB receiver to access the circuit board.
Toggle the small switch to select the transmission mode (COM or HID).
Plug the receiver into a USB port on the computer.
Press the button on the circuit board for Pairing (automatic connection) with the digital scale.

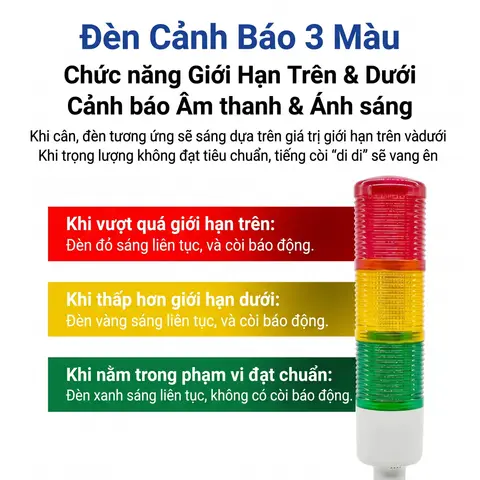

4. Audible & Visual Alarm Function

The system features built-in Upper limit & Lower limit settings. When an out-of-spec weight is detected, the buzzer sounds to help operators identify errors immediately:

Exceeds Upper Limit: Solid Red light + Audible alarm buzzer.
Below Lower Limit: Solid Yellow light + Audible alarm buzzer.
Within Spec (OK): Solid Green light + No buzzer sound.

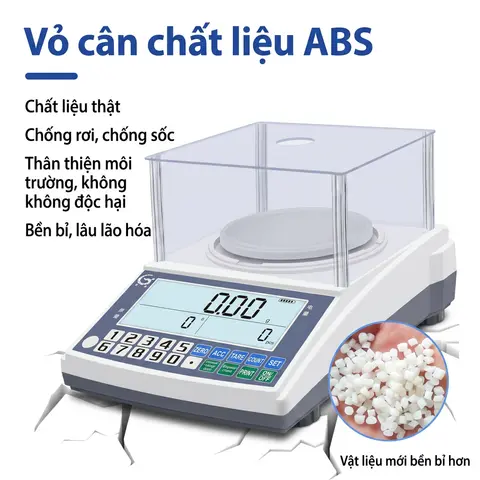

5. Durable ABS Housing & Sharp Display

High-Quality ABS Material: The outer housing is made of virgin ABS plastic, providing enhanced drop resistance, shock absorption, and anti-aging durability in industrial environments.

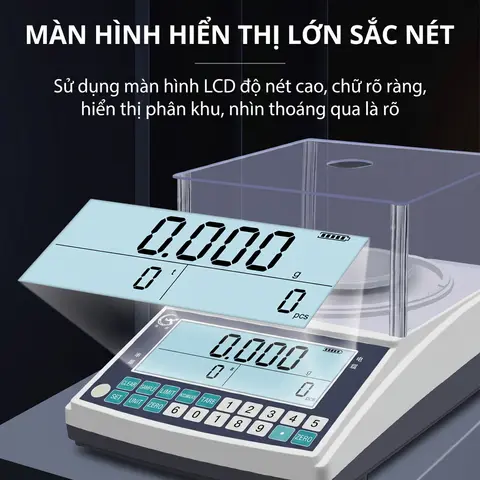

Large LCD Display: Delivers crisp, high-contrast digits with clearly divided functional zones for fast operation and reduced eye strain.
