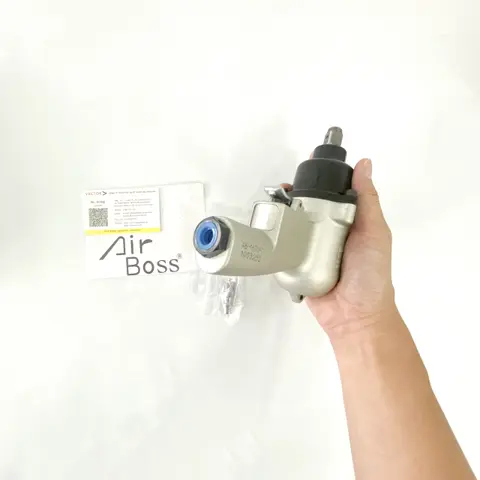

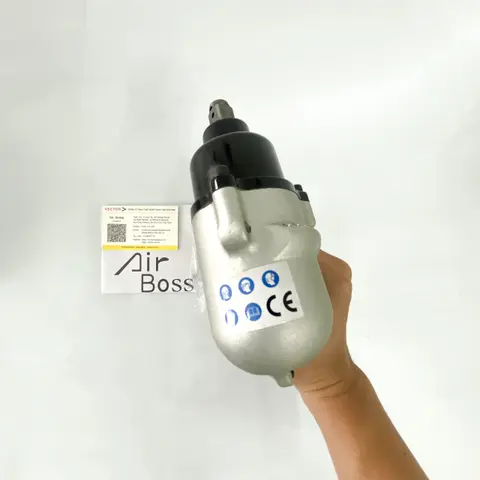

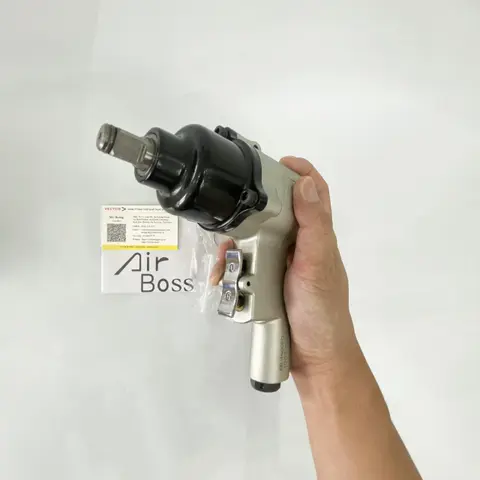

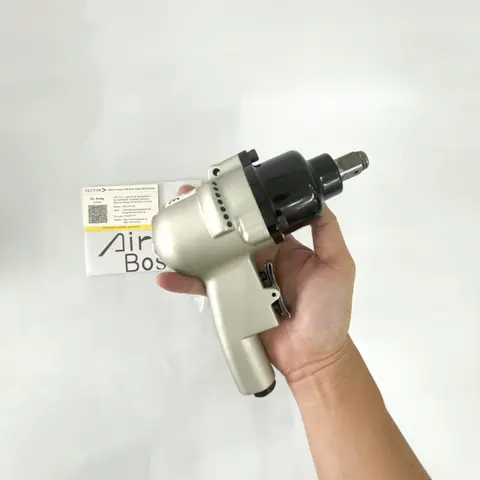

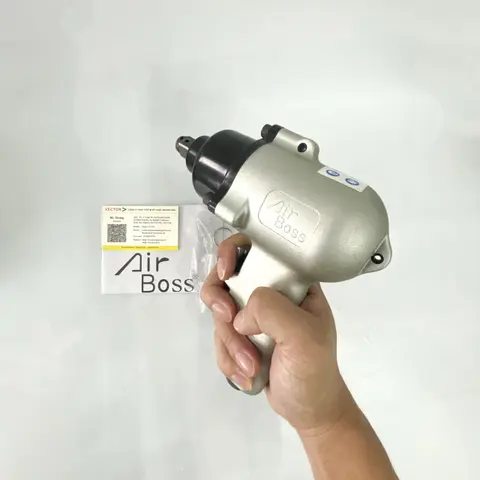

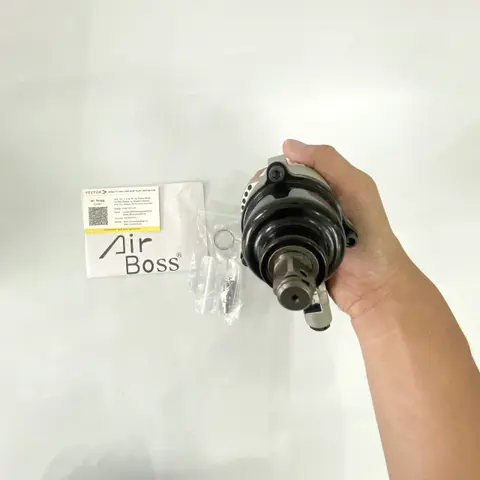

Pneumatic bolt tightening gun AB-1600PD (Twin Hammer) – 3/8″ and 1/2″

SKU: AB-1600PD

The pneumatic impact wrench AB-1600PD is a powerful and flexible tool for professional mechanical workshops and assembly lines. With a twin hammer mechanism providing maximum torque up to 300 N.M, compact design weighing only 1.4 kg and 2 socket options 3/8″ and 1/2″, the AB-1600PD handles all tasks quickly, efficiently and accurately.

Mechanism: Powerful Twin Hammer.
Maximum torque: 300 N.M.
Weight: Ultra-light only 1.4 kg.
Options: 2 socket versions 3/8″ and 1/2″.

Contact for a quote

Sales Leader: 0366 139 169 Sales Exec: 087 86 000 86

Are you looking for a tool that can handle high-intensity workloads in a repair shop or assembly line? An impact wrench that is both powerful and durable, yet compact enough for flexible operation?

The AB-1600PD Pneumatic Impact Wrench is the comprehensive solution, designed to be the ultimate assistant for professional technicians.

Key Features That Make the Difference

1. Superior Performance with Twin Hammer Mechanism

At the heart of the AB-1600PD is the renowned Twin Hammer mechanism, which delivers balanced and stable impact force. This not only provides a maximum torque of 300 N.M to easily handle the most stubborn bolts, but also minimizes vibration transmitted to the user's hand, allowing for extended work without fatigue.

2. Smart, User-Optimized Design

Weighing only 1.4 kg with a length of 161 mm, the AB-1600PD is extremely compact. The pistol-grip design with an ergonomic handle allows for easy one-handed operation, helping you effortlessly reach the tightest spaces.

3. Maximum Flexibility with Two Versions

We understand that every job requires a specialized tool. Therefore, the AB-1600PD offers 2 square drive options for you to choose from:

3/8″ Version: Ideal for tasks requiring precision on 12-14mm bolts.
1/2″ Version: Perfect for 14mm bolts and applications requiring higher torque.

4. Durable and Reliable

Crafted from premium materials, the AB-1600PD is built for durable operation in harsh industrial environments. The tool operates stably at an air pressure of 6.3 kg/c㎡, ensuring consistent performance over long-term use.

Versatile Applications

Industrial assembly lines.
Motorcycle and electric bike repair shops.
Automotive garages (for small engine components).
Machinery and equipment maintenance.

Technical Specifications

Attribute	Details
Model	AB-1600PD
Tool Type	Pneumatic Impact Wrench
Mechanism	Twin Hammer
Square Drive Options	3/8″ (for 12-14mm bolts) or 1/2″ (for 14mm bolts)
Free Speed	7800 rpm
Working Torque	32 – 280 N.M
Max. Torque	300 N.M
Overall Length	161 mm
Net Weight	1.4 kg
Air Consumption	0.3 m³/min
Air Inlet	1/4″
Air Hose	10 mm
Air Pressure	6.3 kg/c㎡

Package includes:

- 01 x Pneumatic Impact Wrench Body AB-1600PD (Optional 3/8″ or 1/2″ anvil)
- 01 x Air Hose Quick Coupler
- 01 x User Manual
- 01 x Screwdriver Bit
- 01 x Suspension Bail
