Screwdriver AB-8 1/4″(20-60 N.m)

Model: AB-8
Bolt tightening capacity: 6-8 mm
Clutch mechanism: Twin Dog
No-load speed: 8500 rpm
Recommended torque: 15-44 ft-lb (20-60 N.m.)
Overall length: 190 mm
Net weight: 2.2 lbs (1.0 kg)
Air consumption: 0.3 m³/min
Air inlet: 1/4″ PT (6.4 mm)
Air hose: 6.4 mm
Air pressure: 6.3 kg/c㎡

Contact for a quote

Chat Zalo 0969 56 56 80

Sales Leader: 0366 139 169 Sales Exec: 087 86 000 86

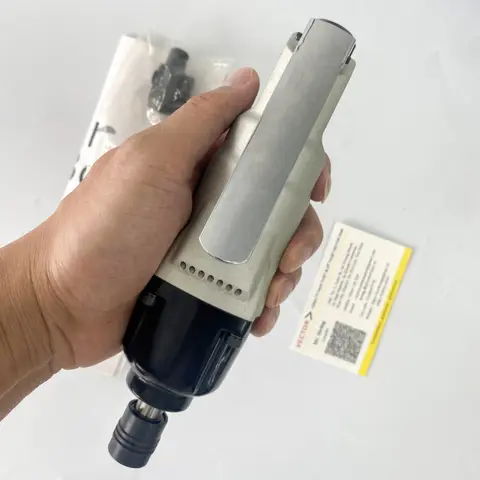

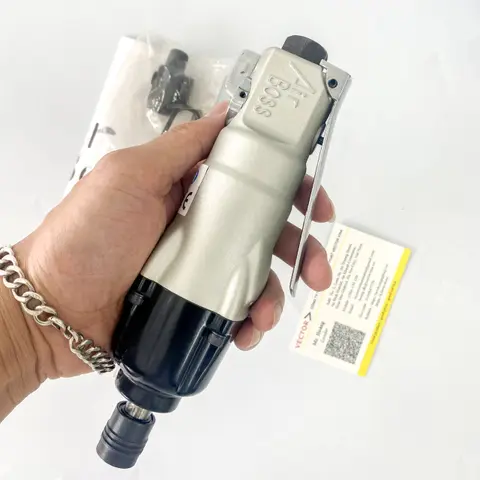

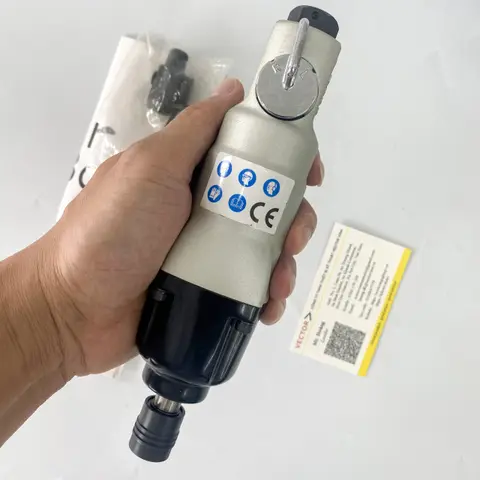

AB-8: Powerful, Versatile Impact Pneumatic Screwdriver for All Assembly Tasks

Looking for a powerful, efficient, and reliable tool for assembly operations? The AB-8 impact pneumatic screwdriver is the perfect solution! Featuring a superior design and outstanding performance, the AB-8 helps you complete tasks quickly and accurately.

Superior Performance with Twin Dog Technology

The highlight of the AB-8 is its advanced Twin Dog clutch mechanism, delivering an impressive torque range of 15-44 ft-lb (20-60 N.M.). This ensures secure fastening for 6-8 mm bolts, meeting diverse job requirements. With a free speed of up to 8500 rpm, the AB-8 optimizes your working time and productivity.

Compact, Easy-to-Use Design

With an overall length of 190 mm and a net weight of only 2.2 lbs (1.0 kg), the AB-8 is a compact tool that is easy to maneuver in tight spaces and reduces operator fatigue during extended use. The convenient 1/4 inch straight design offers maximum flexibility for users.

Detailed Specifications of AB-8:

Parameter	Details
Model	AB-8
Bolt Capacity	6-8 mm
Clutch Mechanism	Twin Dog
Free Speed	8500 rpm
Torque Range	15-44 ft-lb (20-60 N.M.)
Overall Length	190 mm
Net Weight	2.2 lbs (1.0 kg)
Air Consumption	0.3 m³/min
Air Inlet	1/4″ PT (6.4 mm)
Air Hose Size	6.4 mm
Air Pressure	6.3 kg/c㎡

Versatile Applications – Suitable for Various Industries

The AB-8 pneumatic screwdriver is the ideal choice for a wide range of assembly sectors, including:

Home appliance assembly
Electronics assembly
Piping systems
Furniture manufacturing and assembly
Industrial applications
Bicycle and motorcycle assembly

Whether you are a professional technician or an individual user, the AB-8 meets the most demanding requirements, delivering high efficiency and long-lasting durability.
