QD Connector Tightening Machine (Quick Disconnect) for Liquid Cooling System

SKU: QD connector tightening machine

Specialized QD (Quick Disconnect) fitting tightening machine for AI server liquid cooling systems. Torque range 6-22 N.m, multi-step tightening to protect threads, integrated Vector Vina MES software for traceability and ensuring 100% leak prevention.

Specialized QD Fitting Tightening Machine for AI Server Liquid Cooling. Torque 6-22 N.m, Vector Vina MES integration, 100% leak-free guarantee

Contact for a quote

Chat Zalo 0969 56 56 80

Sales Leader: 0366 139 169 Sales Exec: 087 86 000 86

QD (Quick Disconnect) Fitting Tightening Machine

QD Fitting Tightening Machine
QD接头拧紧机

Specialized for Liquid Cooling System Assembly

Specialized for Liquid Cooling System Assembly
专用于液冷系统组装

Precision tightening solution for QD Fittings integrated with Vector Vina management software. Ensuring absolute leak-free performance and 100% traceability for high-performance AI server systems.

集成Vector Vina管理软件的 QD接头 精密拧紧解决方案。确保绝对防漏性能，并为高性能AI服务器系统提供100%的可追溯性。

*Experimental video: Simulating component loading. (Note: Standard process includes Barcode Scanning check before run).
*Experimental video: Simulating component loading. (Note: Standard process includes Barcode Scanning check before run).
*实验视频：模拟上料操作。(注意：标准流程包括运行前的 条码扫描 检查)。

Stringent Requirements of Liquid Cooling Systems
Stringent Requirements of Liquid Cooling Systems
液冷系统的严格要求

💧	Absolute Leak-Free Guarantee Absolute Leak-Free Guarantee / 绝对防漏保证 Precise torque ±5% ensures standard O-ring compression, preventing coolant leakage. Precise torque ±5% ensures standard O-ring compression, preventing coolant leakage. 精确扭矩±5%确保O型圈达到标准压缩，防止冷却液泄漏。
⚙️	Flexible Parameter Settings Flexible Parameter Settings / 灵活的参数设置 Easy setup of Torque, Speed, Turns on HMI/PC. Multi-step tightening protects threads. Easy setup of Torque, Speed, Turns* on HMI/PC. Multi-step tightening protects threads.* 在HMI/PC上轻松设置扭矩、速度、圈数。多步拧紧保护螺纹。
🏭	Specialized Jig Specialized Jig / 专用治具 Jig holds Manifold/Tube tightly, quick & safe operation. Jig holds Manifold/Tube tightly, quick & safe operation. 治具紧固歧管/管件，操作快速、安全。

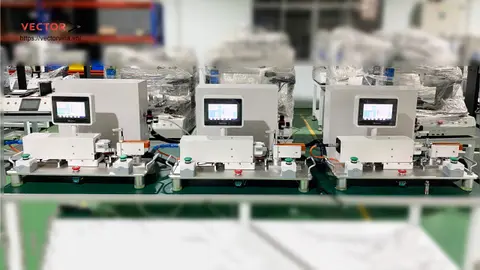

Hệ thống 3 máy siết đầu QD thực tế

Actual image of QD Fitting Tightening Machines
Actual image of QD Fitting Tightening Machines
QD接头拧紧机实拍图

Vector Vina Management Software (MES Integration)
Vector Vina Management Software (MES Integration)
Vector Vina 管理软件 (MES集成)

Smart production management based on Barcode
Smart production management based on Barcode
基于条形码的智能生产管理

1. Smart Screening (Poka-yoke)

Smart Screening / 智能筛选

Barcode Management: Identify product.
Barcode Mgmt: Identify product.
条码管理：识别产品。
Error Blocking (Interlock): Lock machine if SQL/MES check detects product NG at previous stage.
Interlock: Lock machine if SQL/MES check detects product NG at previous stage.
互锁：如果SQL/MES检查发现前一工序产品NG，则锁定机器。

2. Data Profile

Data Profile / 数据档案

Actual Torque
Actual Torque / 实际扭矩
Turns
Turns / 圈数
Status (OK/NG)
Status / 状态
Retries
Retries / 重试次数

3. MES Sync

MES Sync / MES 同步

Long-term history.
Long-term history.
长期历史记录。
Traceability.
Traceability.
可追溯性。
Productivity analysis.
Productivity analysis.
生产率分析。

Specifications
技术规格

Item Item / 项目	Specification Specification / 规格
Applicable Component Applicable Component / 适用组件	Quick Disconnect Fitting (QD – Quick Disconnect Fitting)
Torque Range Torque Range / 扭矩范围	6 – 22 N.m
Rotation Speed Speed / 转速	30 – 350 r.p.m (Servo Control / 伺服控制)
Configurable Parameters Setting / 设置能力	Torque, Speed, Turns (HMI / PC App) Torque, Speed, Turns / 扭矩、速度、圈数
Software Features Software Features / 软件功能	Check Barcode, Check SQL/MES (Interlock NG), Push Data Barcode check, Check SQL/MES (Interlock NG), Push Data 条码检查，检查SQL/MES (互锁NG)，上传数据
Interface Interface / 接口	RS232 / RS485 / I/O
Management System Mgmt System / 管理系统	Vector Vina Management App

Are you a Liquid Cooling equipment manufacturer?

您是液冷设备制造商吗？

Contact us to ensure reliability for your AI server cooling systems with precise QD tightening processes and comprehensive data management.

请联系我们，通过精确的QD拧紧工艺和全面的数据管理，确保您的AI服务器冷却系统的可靠性。
