Pisco WTB-W-SET vacuum pen (built-in valve type) – Japan

Pisco WTB-W-SET Vacuum Pen (Built-in Valve Type) – Japan

Are you looking for a solution to pick up, hold, and move ultra-small components accurately and safely? Does using traditional tweezers waste time and easily drop or damage sensitive parts?

Pisco WTB-W-SET Vacuum Pen is the professional tool designed to thoroughly solve these problems. Coming from the Japanese brand Pisco, this product ensures superior quality and reliability, significantly increasing productivity and work efficiency.

Introduction to Pisco WTB-W-SET Vacuum Pen

The Pisco WTB-W-SET vacuum pen is a complete tool kit, featuring a pen body with a built-in control valve and vacuum generator. Simply connect it to a compressed air source, and you immediately have a powerful tool to handle the smallest objects without the need for a bulky vacuum pump system.

Smart Operating Mechanism (VTB Type – Built-in Valve)

The outstanding feature of the WTB-W-SET model lies in the valve mechanism integrated right on the pen body:

• PRESS TO SUCTION: When you press the button, compressed air is supplied to the vacuum generator, creating suction force at the pen tip to pick up components.
• RELEASE TO DROP: When you release the button, the air supply is cut off and the vacuum suction disappears, gently and accurately releasing the component at the desired position.

This mechanism is not only extremely easy to use but also saves energy and minimizes noise as compressed air is only used when necessary.

Outstanding Product Advantages

• High Precision: Flexible pick-and-place operation, much safer than using tweezers.
• Component Protection: Soft silicone suction cup does not scratch or damage sensitive parts such as electronic chips, glass surfaces, etc.
• Increased Productivity: Significantly shortens assembly and repair time.
• Compact & Lightweight Design: Pen-shaped for easy grip, preventing hand fatigue during long working hours.
• Reputable Brand: Manufactured by Pisco, Japan's leading pneumatic equipment brand.

Practical Applications

The WTB-W-SET vacuum pen is an indispensable tool in the following industries:

• Electronics assembly: Pick and place microchips, IC chips, transistors, solder balls.
• Watch and phone repair: Handling ultra-small mechanical and electronic components.
• Laboratories and research: Picking up small specimens.
• High-tech agriculture: Assisting in sowing rare, small-sized seeds.
• Jewelry & handicrafts: Stone setting, model assembly, etc.

Technical Specifications

• Product Code: WTB-W-SET
• Type: Vacuum pen with built-in valve (VTB)
• Working Fluid: Air
• Operating Pressure: 0.5MPa
• Pad Material: Silicone
• Manufacturer: Pisco
• Origin: Japan

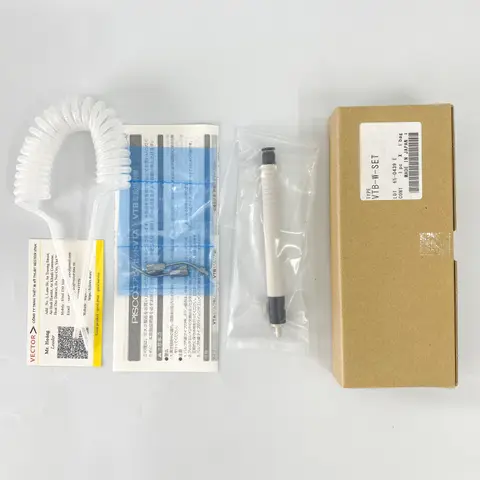

Complete WTB-W-SET Product Set Includes:

• 01 x Pisco vacuum pen body type VTB
• 04 x Silicone suction tips with various diameters: φ2mm, φ4mm, φ6mm, φ8mm

Replacement Parts (Sold Separately)

To ensure uninterrupted use, we also supply genuine replacement parts. The suction tip (pad) is a wear part and requires periodic replacement.

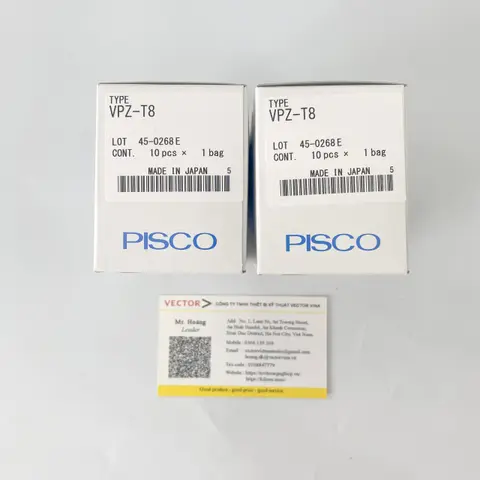

• Suggested replacement tip code: VPZ-T8 (Silicone suction tip φ8mm)
• Customers can contact us to order other suction tip sizes suitable for their needs.
