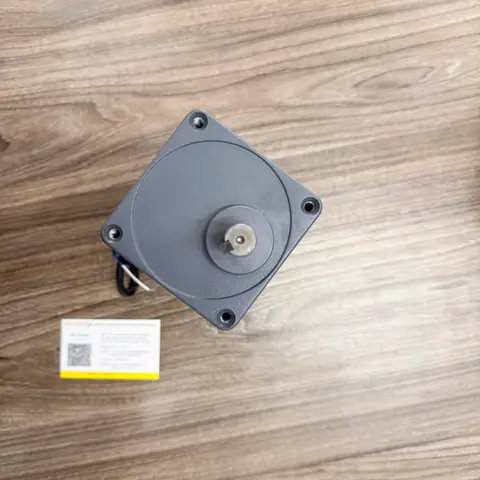

Geared motor ZD Motor 5IK60GU-SF / 5GU60KB – 3 Phase, 220V, 60W
Genuine gear motor from ZD Motor. The product set includes an induction motor body code 5IK60GU-SF with 60W power (3 Phase 220V) combined with a gear head code 5GU60KB. The device operates durably with motor rotation speed reaching 1350/1650 r/min (50/60Hz), IP20 protection rating, Class B insulation. This is an optimal transmission solution for conveyors, assembly lines, and industrial automation machine systems.
Product Overview
The ZD Motor gear motor is a high-quality transmission solution widely used in industrial automation. The unit is a seamless combination of the 5IK60GU-SF induction motor body and the 5GU60KB gearhead, delivering stable torque and continuous operation performance (Continuous operation).
Powered by a 3-phase 220V supply, the product operates smoothly with low heat generation thanks to its sturdy alloy housing. It is an essential component in production lines demanding high precision and durability.
Detailed Technical Specifications
| Brand | ZD MOTOR |
| Motor Model (Induction Motor) | 5IK60GU-SF |
| Gearhead Model (Gear Head) | 5GU60KB |
| Power (POWER) | 60W |
| Voltage (VOLTS) | 220V |
| Phase (PHASE) | 3-Phase |
| Rated Current (AMPS) | 0.36 A |
| Frequency (CYCLES) | 50/60 Hz |
| Motor Speed (RPM) | 1350 / 1650 r/min |
| Insulation Class | Class B |
| Protection Class | IP20 |
| Operation Mode | Cont. (Continuous operation) |
Practical Applications
The ZD 5IK60GU-SF / 5GU60KB gear motor set is particularly suitable for installation in specialized conveyor systems, mixing machines, packaging equipment, product sorting lines, and industrial robotic arm mechanisms. Distributed by Công ty TNHH Thiết bị Kỹ thuật VECTOR VINA.
