Geared Motor JGB37-520 (6V/12V/24V) – Hybrid Metal-PEEK Plastic Gear Super Durable

SKU: JGB37-520
  • Model: JGB37-520 (Optional versions: 0680 / 1260 / 2460).
  • Voltage: 6V, 12V, 24V DC.
  • Breakthrough technology: Gearbox combining PEEK engineering plastic & Metal → 5 times more durable, maximum noise reduction.
  • Motor core: 100% pure copper wire, high heat resistance.
  • Torque: Strong, high load capacity (up to 80kg.cm depending on gear ratio).
  • Application: Robot manufacturing, autonomous vehicles, medical equipment, automatic curtains.
Contact for a quote
Chat Zalo 0969 56 56 80

Sales Leader: 0366 139 169   Sales Exec: 087 86 000 86

JGB37-520 DC Gear Motor is a comprehensively upgraded version featuring new hybrid gearbox materials, delivering superior performance and extended service life. It is a reliable “heart” for automation machinery, robotics, and smart device manufacturing projects.

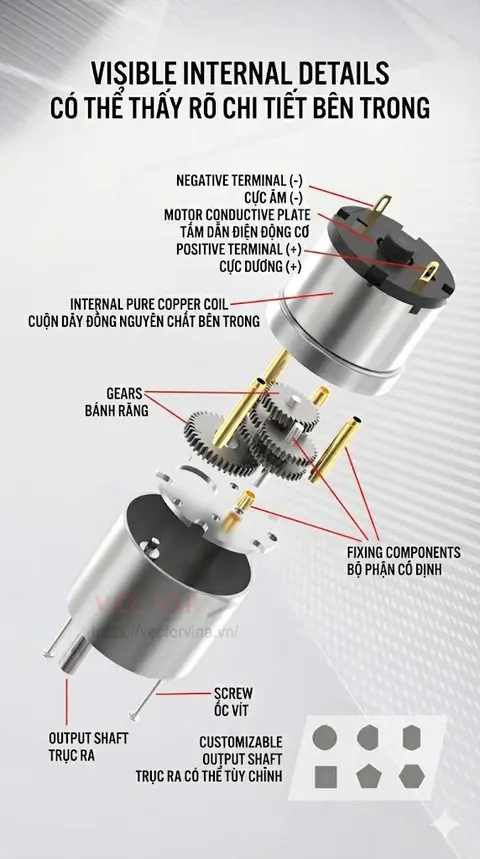

Tổng quan động cơ giảm tốc DC JGB37-520

Key Features

  1. PEEK Hybrid Gear Technology (New): Unlike low-cost models, the JGB37-520 combines metal gears with PEEK engineering plastic (Polyether ether ketone). This provides exceptional wear resistance (5 times more durable than standard metal gears) and significantly quieter operation.
  2. Pure Copper Windings: Both stator and rotor use 100% copper wire, ensuring excellent electrical conductivity, stable torque, and no overheating during continuous operation.
  3. Solid One-Piece Output Shaft: The 6mm diameter output shaft is cast as a single piece, ensuring high rigidity and heavy load capacity without bending or warping.

General Technical Specifications

  • Motor Diameter: 37mm
  • Gearbox Length: 19mm – 29mm (depending on gear ratio)
  • Shaft Diameter: 6mm (anti-slip D-cut shaft)
  • Power: ~3.6W
  • Housing Material: Powder-coated metal

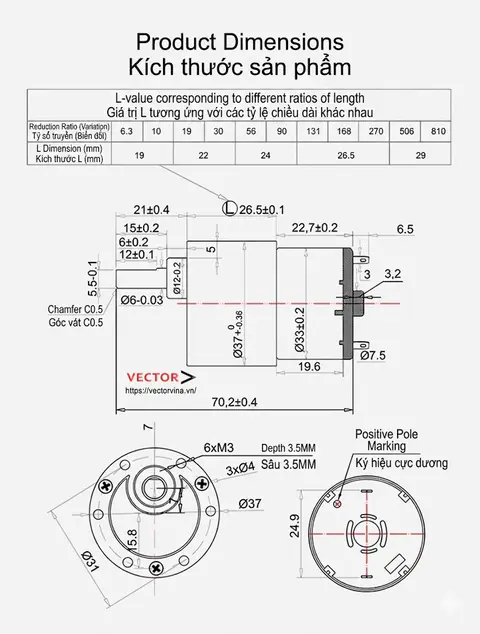

Chi tiết động cơ giảm tốc JGB37-520 trục đồng tâm
Kích thước và cấu tạo hộp số động cơ JGB37-520

Detailed Specifications Table (Speed & Torque)

Note: Please select the appropriate gear ratio according to your load requirements.

6V Version (JGB37-520-0680)

Gear Ratio Speed (RPM) Rated Torque (Kg.cm) Stall Torque (Stall)
6.25 1280 0.15 0.6
10 800 0.24 0.9
18.8 425 0.40 1.6
30 266 0.65 2.6
56 142 1.00 4.0
90 88 1.70 6.8
131 61 2.30 9.2
210 38 3.70 14.8
270 29 4.20 19.4
394 20 6.20 24.8
506 16 8.00 35.0
810 10 12.00 48.0

12V Version (JGB37-520-1260) – Most Popular

Gear Ratio Speed (RPM) Rated Torque (Kg.cm) Stall Torque (Stall)
6.25 960 0.17 0.6
10 600 0.28 1.1
18.8 319 0.48 1.9
30 200 0.75 3.0
56 107 1.20 4.8
90 66 2.00 8.0
131 45 2.70 10.8
210 28 4.30 17.2
394 15 7.30 29.2
506 12 9.10 36.4
810 7 15.00 80.0

24V Version (JGB37-520-2460)

Gear Ratio Speed (RPM) Rated Torque (Kg.cm) Stall Torque (Stall)
10 600 0.28 1.1
30 200 0.75 3.0
56 107 1.20 4.8
90 66 2.00 8.0
131 45 2.70 10.8
210 28 4.30 17.2
506 12 9.10 36.4
810 7 15.00 78.0

(To view other gear ratios not listed, please refer to the attached catalogue in product images)

Practical Applications

  • Robot: Vacuum robot, Balancing robot, Line following car, Robotic arm.
  • Smart home: Automatic curtain system, smart drying rack, electronic door lock.
  • Industrial: Mini conveyor, metering pump, automatic lifting mechanism.
  • Other devices: Money counter, portable power tools.
